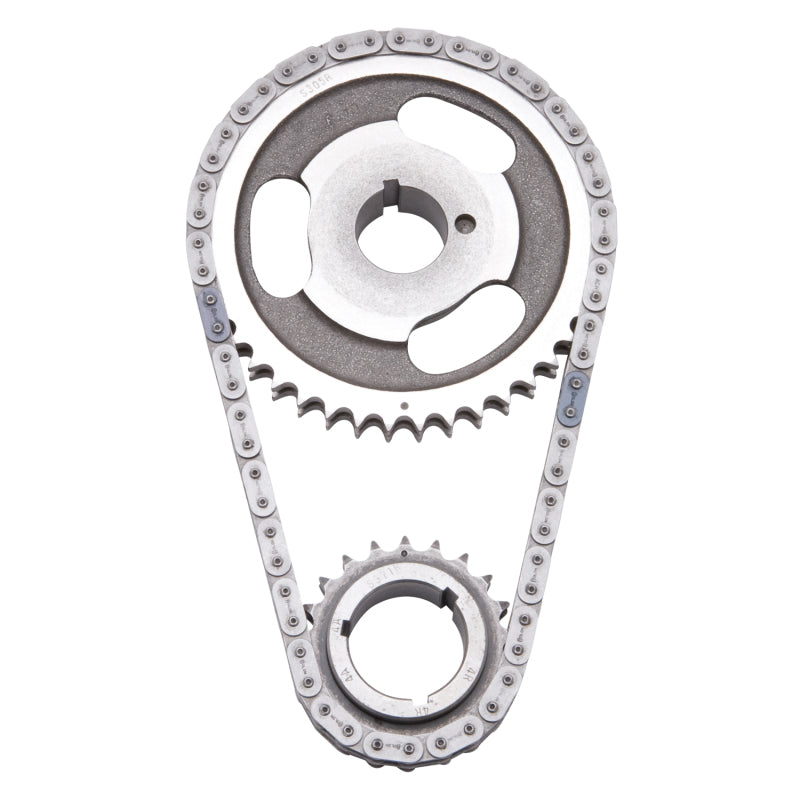

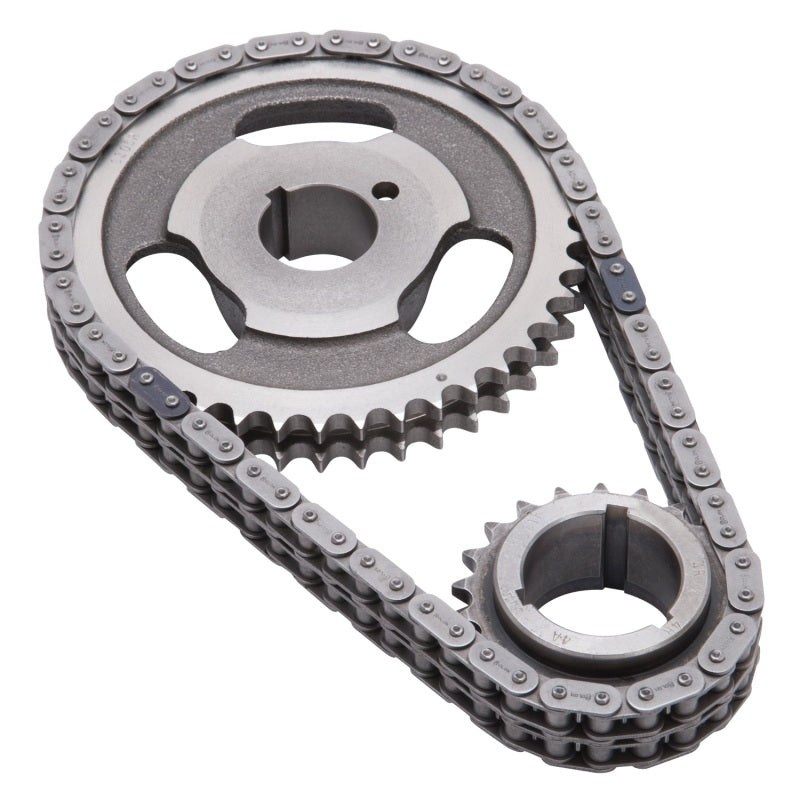

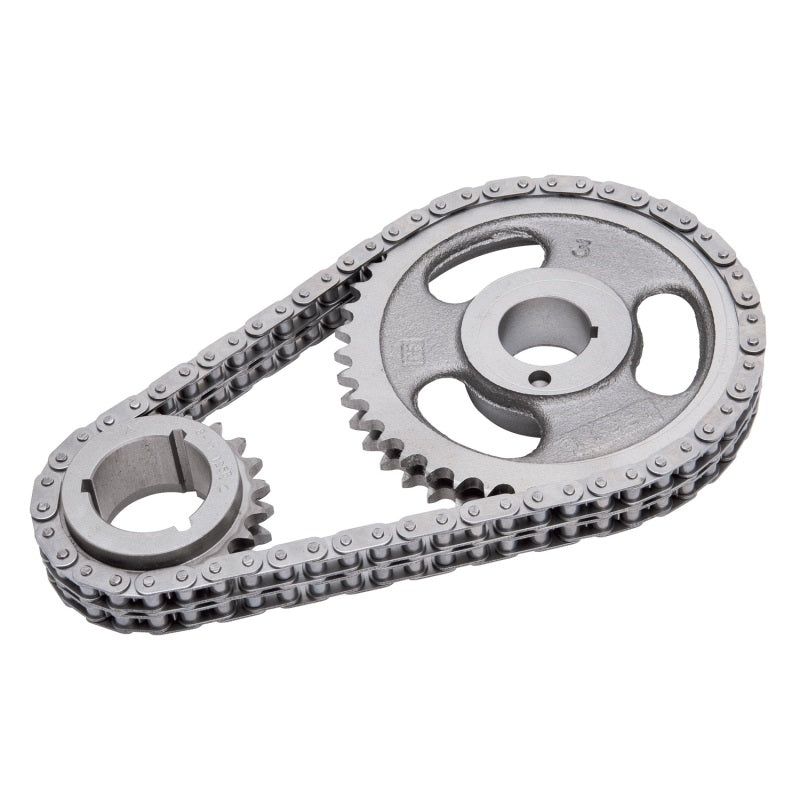

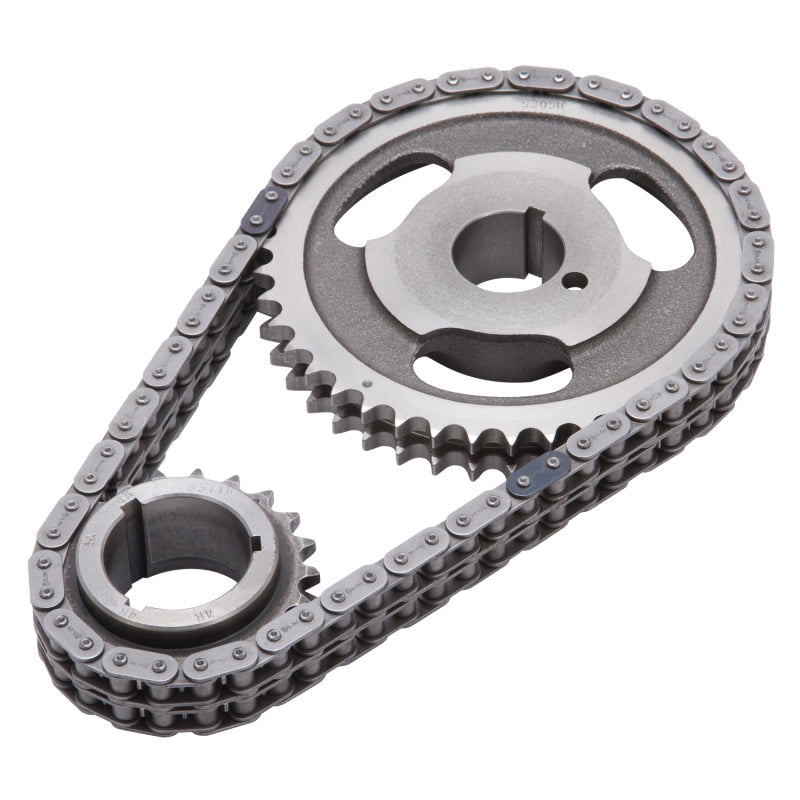

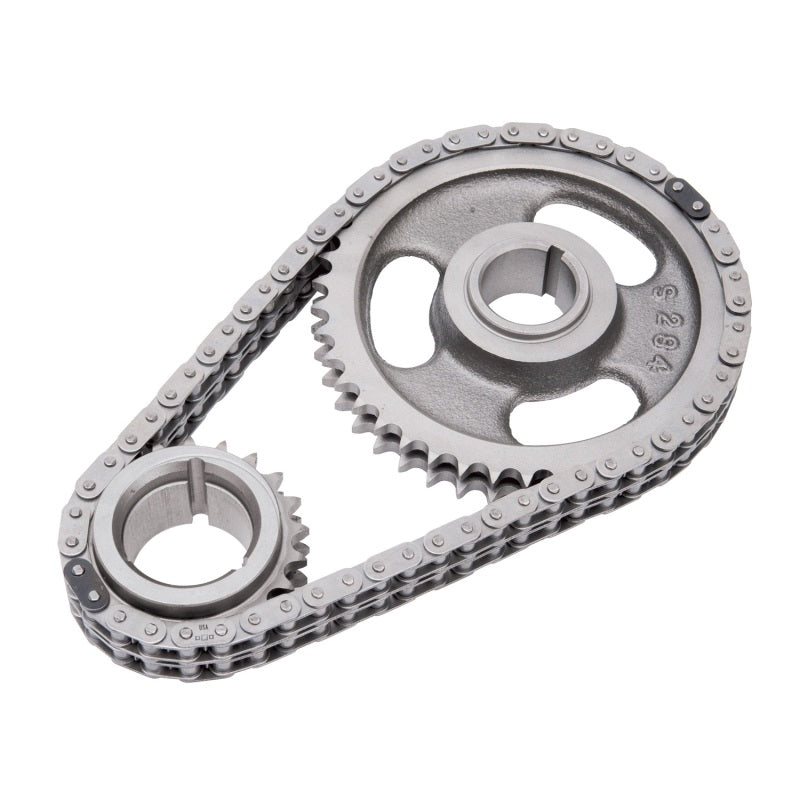

Edelbrock part #7812 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm- ? Performer roller chain sets are engineered to operate up to 6500 rpm.- ? Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. - ? Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. - ? Never stretch the chain with a screwdriver. - ? Check for clearance between the timing chain and block and between the chain and front cover before reassembly. - ? Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break
This Part Fits:
| Year |
Make |
Model |
Submodel |
| 1959-1978 |
Pontiac |
Bonneville |
Base |
| 1976-1978 |
Pontiac |
Bonneville |
Brougham |
| 1959-1962 |
Pontiac |
Bonneville |
Custom |
| 1959-1970,1978 |
Pontiac |
Bonneville |
Safari |
| 1964-1967 |
Pontiac |
Catalina |
2+2 |
| 1959-1978 |
Pontiac |
Catalina |
Base |
| 1971-1972 |
Pontiac |
Catalina |
Brougham |
| 1959-1978 |
Pontiac |
Catalina |
Safari |
| 1962-1970 |
Pontiac |
Catalina |
Ventura |
| 1967-1970 |
Pontiac |
Executive |
Base |
| 1967-1970 |
Pontiac |
Executive |
Safari |
| 1968-1969 |
Pontiac |
Firebird |
350 |
| 1969 |
Pontiac |
Firebird |
350 HO |
| 1968-1969 |
Pontiac |
Firebird |
400 |
| 1968-1977 |
Pontiac |
Firebird |
Base |
| 1970-1977 |
Pontiac |
Firebird |
Esprit |
| 1970-1979 |
Pontiac |
Firebird |
Formula |
| 1968 |
Pontiac |
Firebird |
HO |
| 1969-1979 |
Pontiac |
Firebird |
Trans Am |
| 1973-1975 |
Pontiac |
Grand Am |
Base |
| 1975-1977 |
Pontiac |
Grand LeMans |
Base |
| 1975,1977 |
Pontiac |
Grand LeMans |
Safari |
| 1962-1974,1976-1977 |
Pontiac |
Grand Prix |
Base |
| 1975,1977 |
Pontiac |
Grand Prix |
LJ |
| 1975-1977 |
Pontiac |
Grand Prix |
SJ |
| 1971-1978 |
Pontiac |
Grand Safari |
Base |
| 1971-1974 |
Pontiac |
Grandville |
Base |
| 1975 |
Pontiac |
Grandville |
Brougham |
| 1964-1966,1968-1973 |
Pontiac |
GTO |
Base |
| 1970-1971 |
Pontiac |
GTO |
The Judge |
| 1968-1977 |
Pontiac |
LeMans |
Base |
| 1972-1974 |
Pontiac |
LeMans |
Luxury |
| 1969-1970,1973-1975,1977 |
Pontiac |
LeMans |
Safari |
| 1974 |
Pontiac |
LeMans |
Safari Luxury |
| 1970-1977 |
Pontiac |
LeMans |
Sport |
| 1971 |
Pontiac |
LeMans |
T37 |
| 1959-1966 |
Pontiac |
Star Chief |
Base |
| 1966 |
Pontiac |
Star Chief |
Executive |
| 1961,1968-1970 |
Pontiac |
Tempest |
Base |
| 1968-1969 |
Pontiac |
Tempest |
Custom |
| 1970 |
Pontiac |
Tempest |
GT |
| 1961 |
Pontiac |
Tempest |
LeMans |
| 1961,1968-1969 |
Pontiac |
Tempest |
Safari |
| 1960-1961,1972-1975 |
Pontiac |
Ventura |
Base |
| 1973-1975 |
Pontiac |
Ventura |
Custom |
| 1974 |
Pontiac |
Ventura |
GTO |
| 1975 |
Pontiac |
Ventura |
S |
| 1975 |
Pontiac |
Ventura |
SJ |
