Edelbrock Timing Chain And Gear Set Buick 455

$107.06

Availability: In Stock
SKU: EDE7840

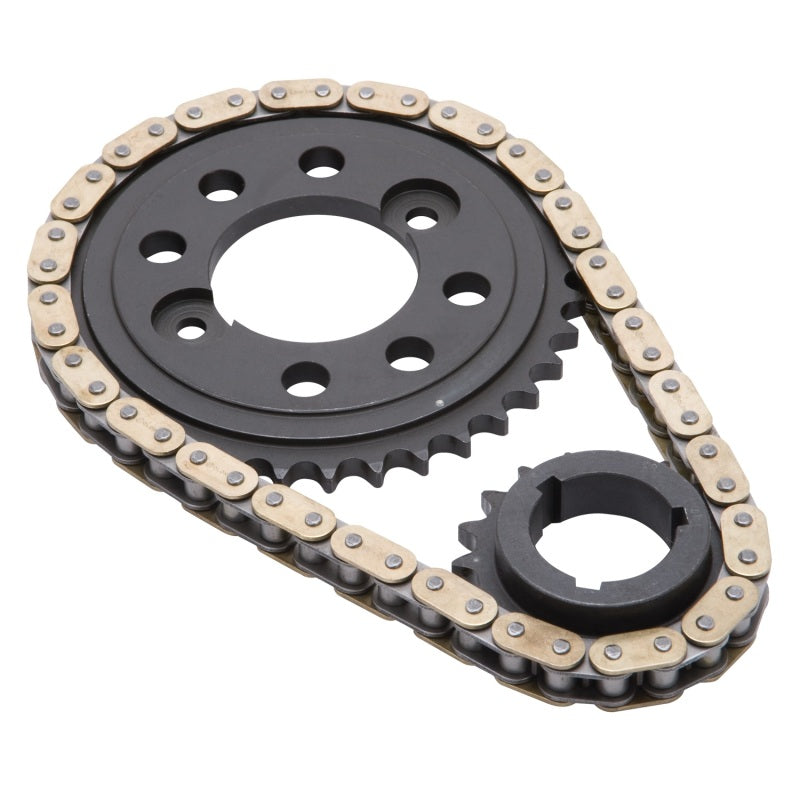

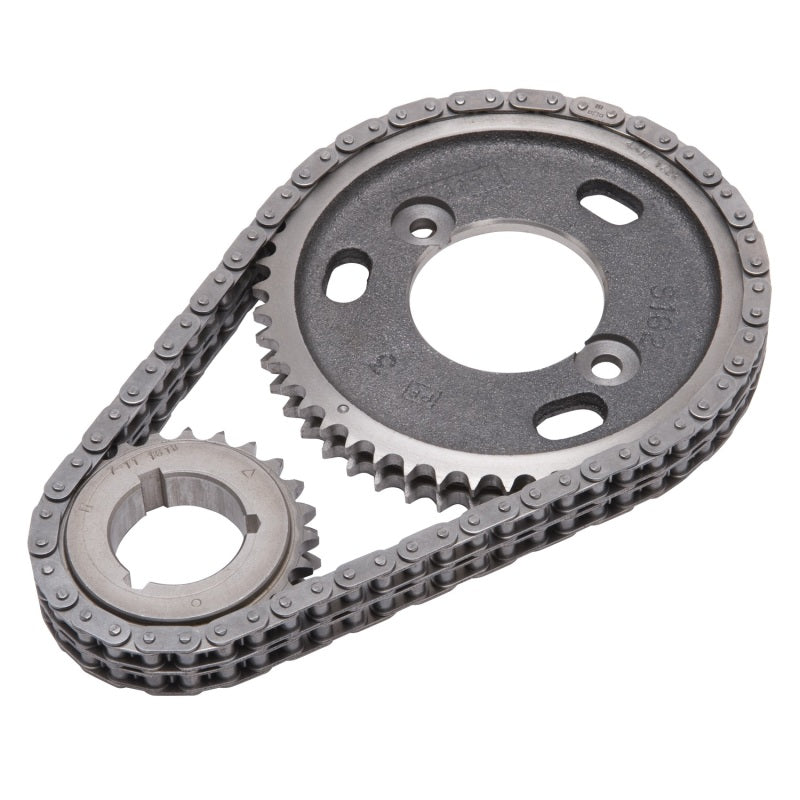

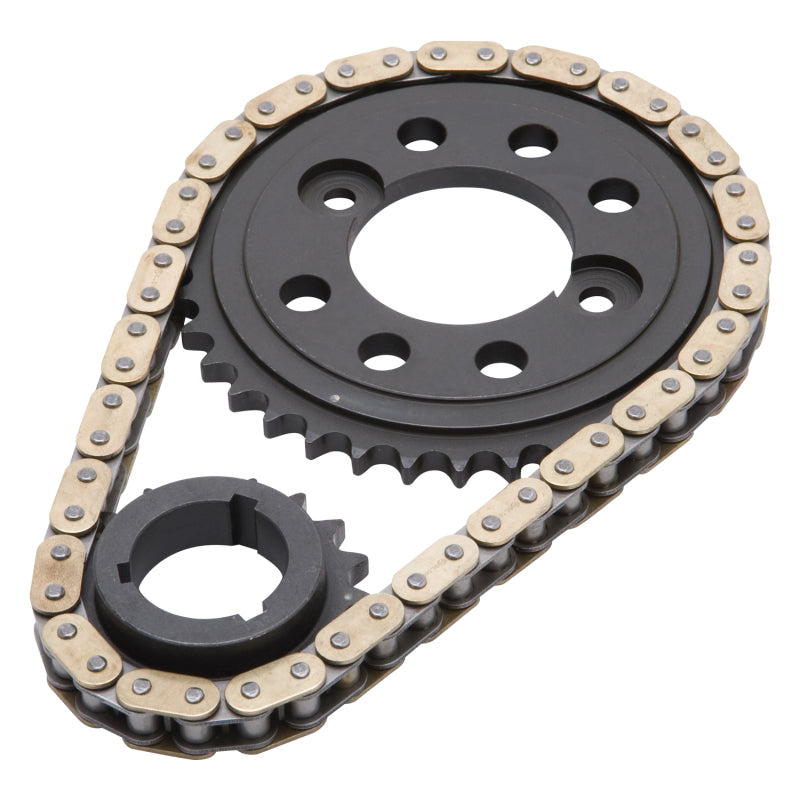

Edelbrock part #7840 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock...

Description

Edelbrock part #7840 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm- ? Performer roller chain sets are engineered to operate up to 6500 rpm.- ? Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. - ? Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. - ? Never stretch the chain with a screwdriver. - ? Check for clearance between the timing chain and block and between the chain and front cover before reassembly. - ? Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break

This Part Fits:

Year	Make	Model	Submodel
1971-1973	Buick	Centurion	Base
1973-1974	Buick	Century	Base
1973-1974	Buick	Century	Luxus
1968-1974,1976	Buick	Electra	225
1968-1974	Buick	Electra	225 Custom
1974	Buick	Electra	225 Limited
1967,1973	Buick	Electra	Base
1967,1975	Buick	Electra	Custom
1975-1976	Buick	Electra	Limited
1970-1976	Buick	Estate Wagon	Base
1967	Buick	Gran Sport	Base
1968-1969	Buick	GS 400	Base
1970-1972	Buick	GS 455	Base
1970	Buick	GS 455	GSX
1970-1975	Buick	LeSabre	Base
1970-1973,1975-1976	Buick	LeSabre	Custom
1974	Buick	LeSabre	Luxus
1973-1974	Buick	Regal	Base
1967-1976	Buick	Riviera	Base
1971	Buick	Riviera	Gran Sport
1975	Buick	Riviera	GS
1976	Buick	Riviera	Sport
1976	Buick	Riviera	SR
1967-1968,1970	Buick	Skylark	Base
1968,1970	Buick	Skylark	Custom
1968,1970	Buick	Sportwagon	Base
1968	Buick	Sportwagon	Custom
1967-1969	Buick	Wildcat	Base
1967-1970	Buick	Wildcat	Custom
