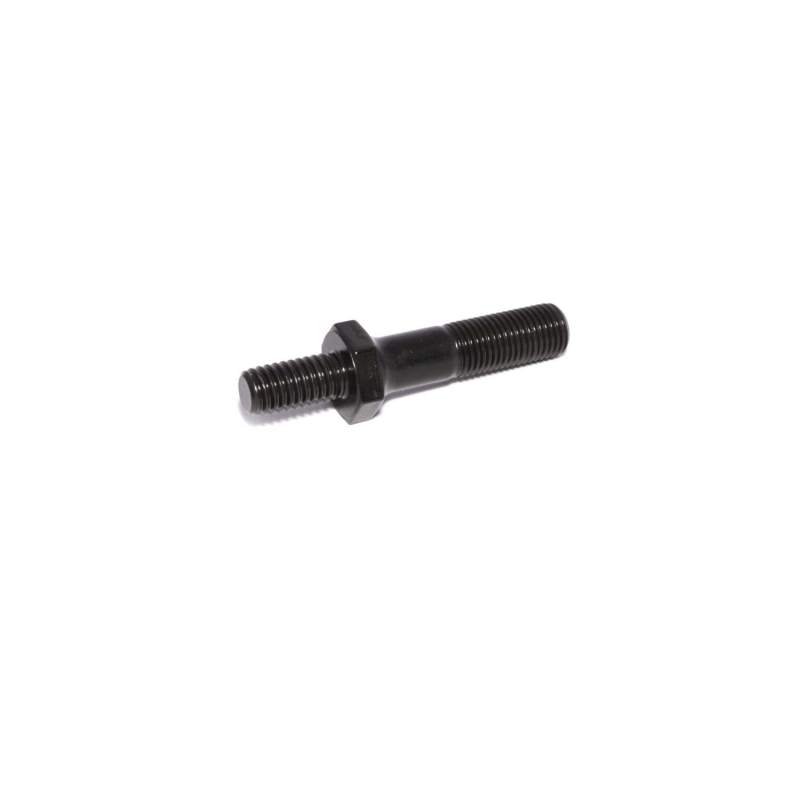

COMP Cams takes pride in having the finest Rocker arm Studs available on the market. The High Energyâ„¢ and Magnum Series Studs work well in Applications with moderate lifts and spring pressures and are available in the popular 3/8" and 7/16" sizes. When ultimate strength is required as with high rpm Roller Cam Applications, the Hi-Techâ„¢ Race Stud is the answer. This Stud has a thin jam nut for Rocker clearance, rolled threads for maximum contact and a ground-flat top so accurate valve adjustment can be achieved and maintained. The diameter of the jam nut is larger in order to spread the load over a larger area. All COMP Cams Studs have generous radii and a black oxide finish. Designed for ultimate strength and locking force High Energy and Magnum polylocks are best for moderate lift and spring pressure Applications Hi-Tech Polylocks work well in all high end Race applications. The Stud girdle polylocks are precision ground for minimum runout and tapered for extra strength in the locking area.Base ThreadPart #DescriptionDiameterLengthStud DiameterEffective Stud Length4514-1Hi-Tech Race Rocker Stud Chevrolet Big Block Mark V and Mark VI3/8".750"7/16"1.900"
This Part Fits:
| Year |
Make |
Model |
Submodel |
| 1996-1997,1999-2000 |
Chevrolet |
C2500 |
Base |
| 1996-1998 |
Chevrolet |
C2500 |
Cheyenne |
| 1999-2000 |
Chevrolet |
C2500 |
LS |
| 1996-1998 |
Chevrolet |
C2500 |
Silverado |
| 1998 |
Chevrolet |
C2500 |
WT |
| 1996-1999 |
Chevrolet |
C2500 Suburban |
Base |
| 1996-1999 |
Chevrolet |
C2500 Suburban |
LS |
| 1996-1997 |
Chevrolet |
C2500 Suburban |
LT |
| 1996-1997,1999-2000 |
Chevrolet |
C3500 |
Base |
| 1996-1998 |
Chevrolet |
C3500 |
Cheyenne |
| 1999-2000 |
Chevrolet |
C3500 |
LS |
| 1996-1998 |
Chevrolet |
C3500 |
Silverado |
| 1996-2000 |
Chevrolet |
Express 3500 |
Base |
| 1996-2000 |
Chevrolet |
Express 3500 |
LS |
| 1996 |
Chevrolet |
G30 |
Beauville |
| 1996 |
Chevrolet |
G30 |
Chevy Van |
| 1996 |
Chevrolet |
G30 |
Hi-Cube |
| 1996 |
Chevrolet |
G30 |
Sportvan |
| 1996-1997,1999-2000 |
Chevrolet |
K2500 |
Base |
| 1996-1998 |
Chevrolet |
K2500 |
Cheyenne |
| 1999-2000 |
Chevrolet |
K2500 |
LS |
| 1996-1998 |
Chevrolet |
K2500 |
Silverado |
| 1998 |
Chevrolet |
K2500 |
WT |
| 1996-1999 |
Chevrolet |
K2500 Suburban |
Base |
| 1996-1999 |
Chevrolet |
K2500 Suburban |
LS |
| 1996-1997 |
Chevrolet |
K2500 Suburban |
LT |
| 1996-1997,1999-2000 |
Chevrolet |
K3500 |
Base |
| 1996-1998 |
Chevrolet |
K3500 |
Cheyenne |
| 1999-2000 |
Chevrolet |
K3500 |
LS |
| 1996-1998 |
Chevrolet |
K3500 |
Silverado |
| 1996-1999 |
Chevrolet |
P30 |
Base |
| 1996-2000 |
GMC |
C2500 |
Sierra SL |
| 1996-2000 |
GMC |
C2500 |
Sierra SLE |
| 1996-2000 |
GMC |
C2500 |
Sierra SLT |
| 1996-1999 |
GMC |
C2500 Suburban |
Base |
| 1996-1999 |
GMC |
C2500 Suburban |
SLE |
| 1996-1999 |
GMC |
C2500 Suburban |
SLT |
| 1996-2000 |
GMC |
C3500 |
Sierra SL |
| 1996-2000 |
GMC |
C3500 |
Sierra SLE |
| 1996-2000 |
GMC |
C3500 |
Sierra SLT |
| 1996 |
GMC |
G3500 |
Magnavan |
| 1996 |
GMC |
G3500 |
Rally |
| 1996 |
GMC |
G3500 |
Rally Camper Special |
| 1996 |
GMC |
G3500 |
Rally STX |
| 1996 |
GMC |
G3500 |
Vandura |
| 1996 |
GMC |
G3500 |
Vandura Special |
| 1996-2000 |
GMC |
K2500 |
Sierra SL |
| 1996-2000 |
GMC |
K2500 |
Sierra SLE |
| 1996-2000 |
GMC |
K2500 |
Sierra SLT |
| 1996-1999 |
GMC |
K2500 Suburban |
Base |
| 1996-1999 |
GMC |
K2500 Suburban |
SLE |
| 1996-1999 |
GMC |
K2500 Suburban |
SLT |
| 1996-2000 |
GMC |
K3500 |
Sierra SL |
| 1996-2000 |
GMC |
K3500 |
Sierra SLE |
| 1996-2000 |
GMC |
K3500 |
Sierra SLT |
| 1996-1999 |
GMC |
P3500 |
Base |
| 1996-2000 |
GMC |
Savana 3500 |
Base |
| 1996-2000 |
GMC |
Savana 3500 |
SLE |
