$145.00
RockJocks weld-on chromoly Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt...

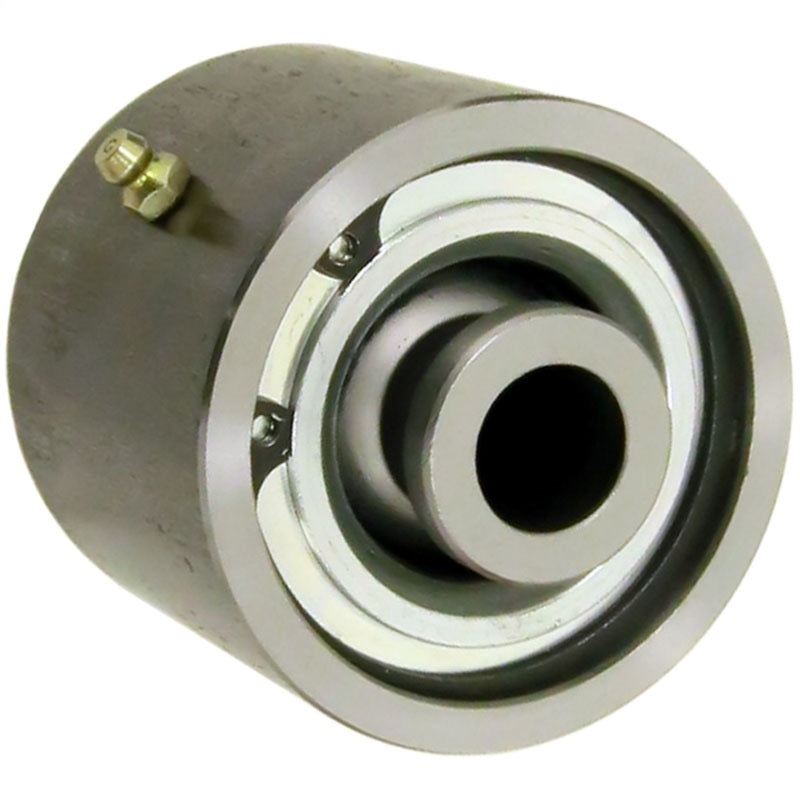

RockJocks weld-on chromoly Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, chromoly side washers and a snap ring. The outer shell is weldable .180 in. wall machined chromoly tubing that is fitted with a zerk fitting for greasing. This specific joint is a 3 in. o.d. and features a 3.250 in. mounting width and a .750 in. thru bolt hole.
Tags: ClearanceItem:N , EPA:N/A , LTL:N , MPN:CE-9111 , Non-CARB:N , Prop65:Y , RockJock , SpecialOrder:Y , Suspension>Suspension Arms & Components ,
